Oil Regeneration

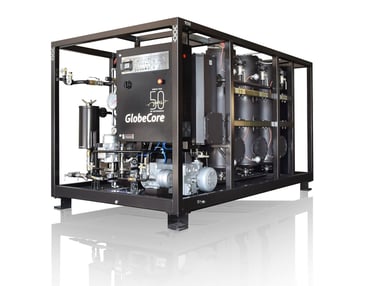

GlobeCore Transformer Oil Regeneration Plants

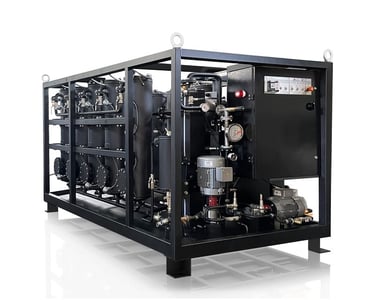

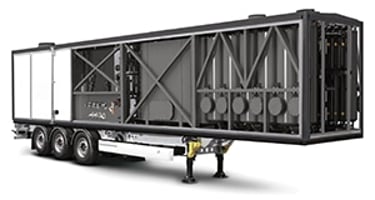

GlobeCore’s CMM-R oil regeneration plants offer a cutting-edge solution for effective and efficient oil regeneration in transformers, especially in energized transformers. Unlike traditional systems, the CMM-R unit can seamlessly process oil while the transformer is in operation, making it an ideal choice for transformer oil maintenance and extending the lifespan of critical electrical infrastructure.

Key Features of GlobeCore Oil Regeneration

The oil regeneration process starts with connecting the CMM-R unit to an energized transformer. Oil from the transformer enters the unit where it undergoes thorough regeneration and degassing. This unique approach effectively removes oxidation products and contaminants from the transformer’s oil, restoring its properties and preventing degradation. The processed oil is then returned to the transformer in multiple cycles, creating a loop that gradually cleanses the transformer’s paper insulation.

As the oil circulates through the energized transformer, the high circulation rate, heat, and vibration promote an optimal cleaning environment. Contaminants embedded in the paper insulation are dislodged and captured by the adsorbent in the unit. This simultaneous oil regeneration and paper insulation cleaning minimizes transformer downtime and enhances insulation quality.

The GlobeCore CMM-R Oil Regeneration Machine ensures that both the oil and paper insulation remain in optimal condition, offering a reliable, sustainable, and cost-effective solution for transformer oil regeneration and purification.

Oil Regeneration machines

Oil Degassing, Thermal Oil Vacuum Drying

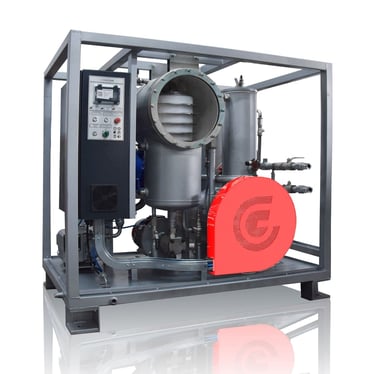

Oil Degassing

There are special oil degassing units used to perform the degassing and vacuumizing processes. The main part of such equipment is a degasifier that consists of two tanks. The vacuum in the tanks is created by vacuum pump system. Oil Degassing takes place when oil flows in thin streams on the surface of Raschig rings.

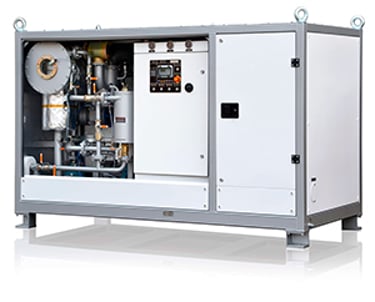

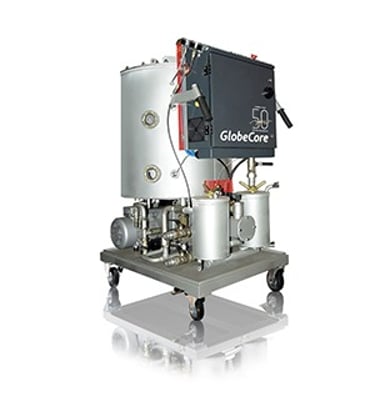

Thermal Oil Vacuum Drying

The plant is assembled on a frame, supporting the unit’s components: input and output oil pumps, dielectric control cabinet, vacuum chamber, coarse and fine cartridge filters, vacuum pump and pipelines with valves.

The CMM mobile oil unit may be used for:

(1) heating electrical equipment that contains dielectric insulating oi with hot oil;

(2) for vacuum drying of transformer; and

(3) for vacuumizing. The unit is best suited to facilities that install, repair and service oil filled electric power transformers and other oil filled electrical equipment.

Oil Purification & Filtration Machines

Reliable transformer operation starts with clean oil. Contaminants in transformer oil lead to breakdowns, expensive repairs, and unplanned downtime. GlobeCore provides cutting-edge transformer oil treatment solutions, including high-performance oil purification systems and oil purifiers, to enhance transformer efficiency and longevity.

Why Choose GlobeCore?

GlobeCore’s advanced oil purification technology ensures maximum performance and cost savings. Our transformer oil filtration and purification systems remove moisture, gases, and solid impurities, restoring oil properties and extending transformer life. Investing in our solutions means fewer failures, reduced maintenance costs, and minimized environmental impact.

Key Advantages of GlobeCore’s Oil Purification Systems:

• Custom Solutions – We tailor transformer oil treatment systems to specific operational needs, offering features such as remote control and particle monitoring.

• Continuous Operation with Energized Transformers – Our oil purifiers work seamlessly with live transformers using the Transformer Safety System (TSS), reducing downtime and maximizing efficiency.

• Seamless Integration – Quick-connect systems ensure easy installation and operation.

• Comprehensive Support – From commissioning to maintenance, our experts provide full assistance to optimize your equipment’s performance.

• Cost Savings – Regular transformer oil purification reduces the need for fresh oil purchases and extends equipment service life.

Invest in Performance and Reliability

GlobeCore’s transformer oil filtration and purification systems are trusted worldwide for their efficiency and innovation. By choosing GlobeCore, you ensure uninterrupted transformer operation, lower maintenance costs, and maximum return on investment. Upgrade to superior oil purification today and experience long-term savings and reliability.

Contact us to learn more about GlobeCore’s advanced oil treatment technologies!

Oil Drying Unit

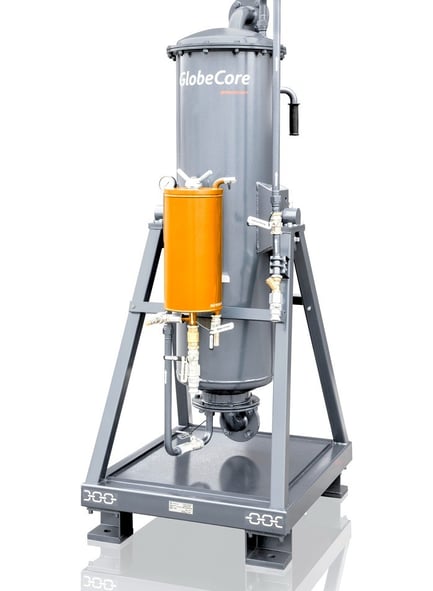

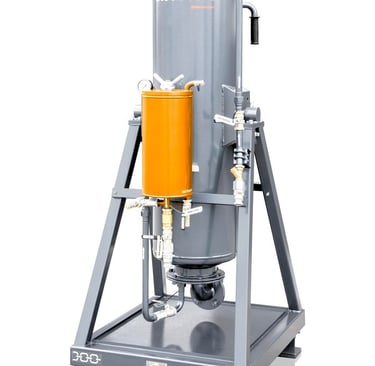

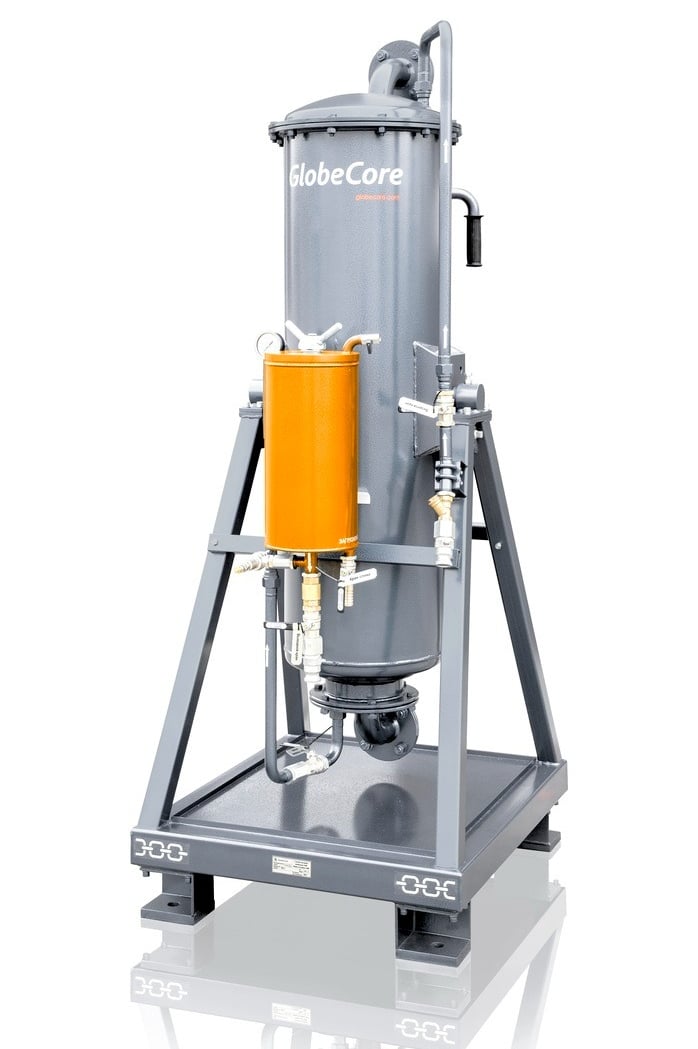

ZP-130 Sorbent Cartridges

The mobile oil station ZP-130 is designed for the purification of lubricating and electrical insulation oils, removing mechanical impurities, and...

• Advantages

  • simple operation and servicing;

  • oil service life extension;

  • various configurations (stationary or mobile);

  • sorbent regeneration with a BRZ-100 unit with subsequent reuse of the sorbent for oil processing.

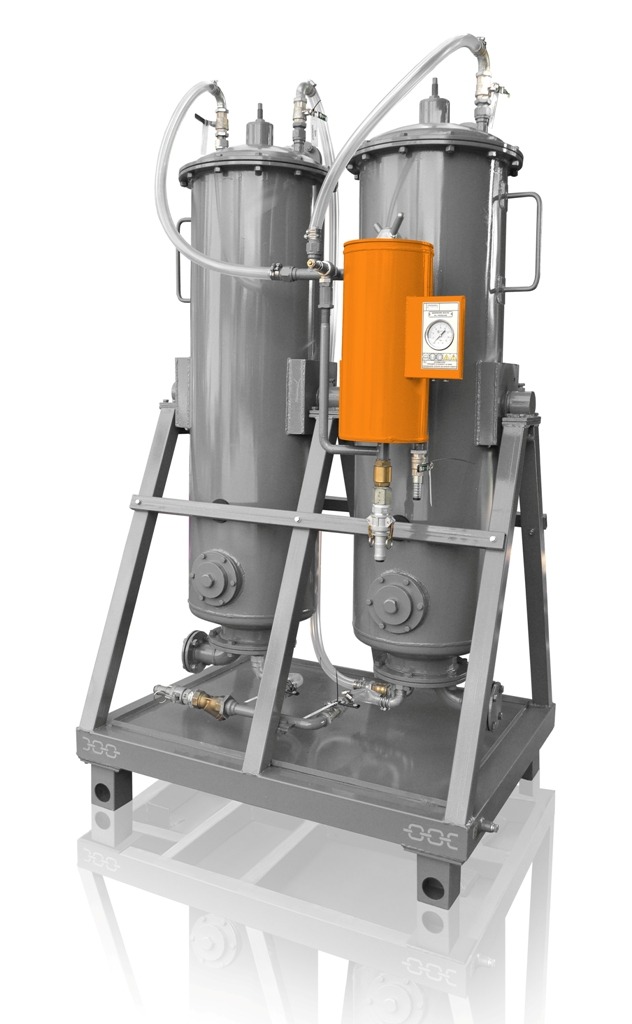

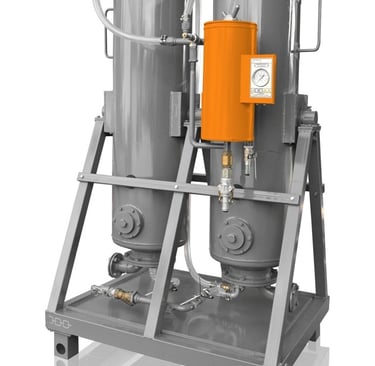

ZP-260 Sorbent Cartridges

ZP-260 sorbent cartridges are designed for drying. The drying process...

• Advantages

  • simple operation and servicing;

  • oil service life extension;

  • various configurations (stationary or mobile);

  • sorbent regeneration with a BRZ-100 unit with subsequent reuse of the sorbent for oil processing.

.

Online Transformer Dry-Out Systems

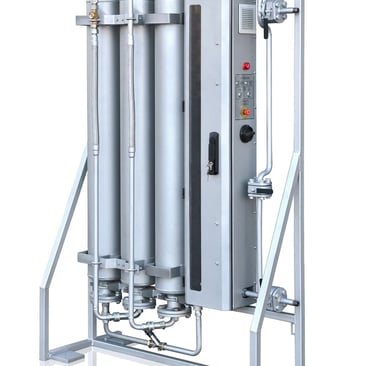

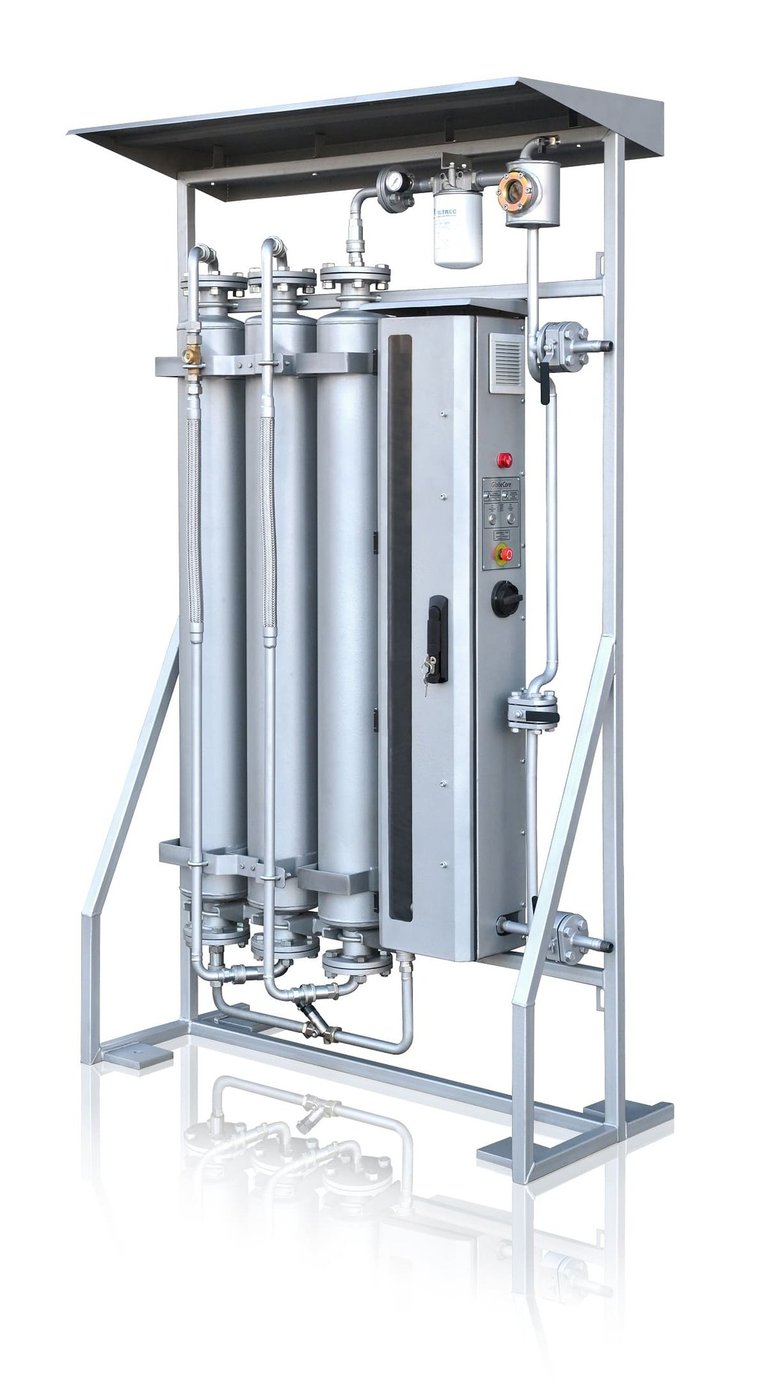

CMM-260C Online Transformer Dry-Out System

Water is a dangerous enemy of the transformer, reducing the dielectric strength of transformer oil, accelerating the aging of oil...

• Advantages

  • connection to transformer of any type and age;

  • the process of connection takes less than an hour;

  • the sorbent captures water regardless of its temperature and form;

  • the machine dries the oil without heating and does not require constant operator control;

  • the machine can be installed temporarily or permanently.

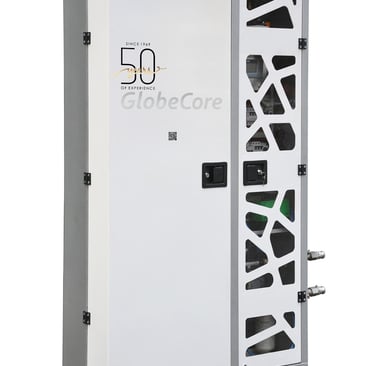

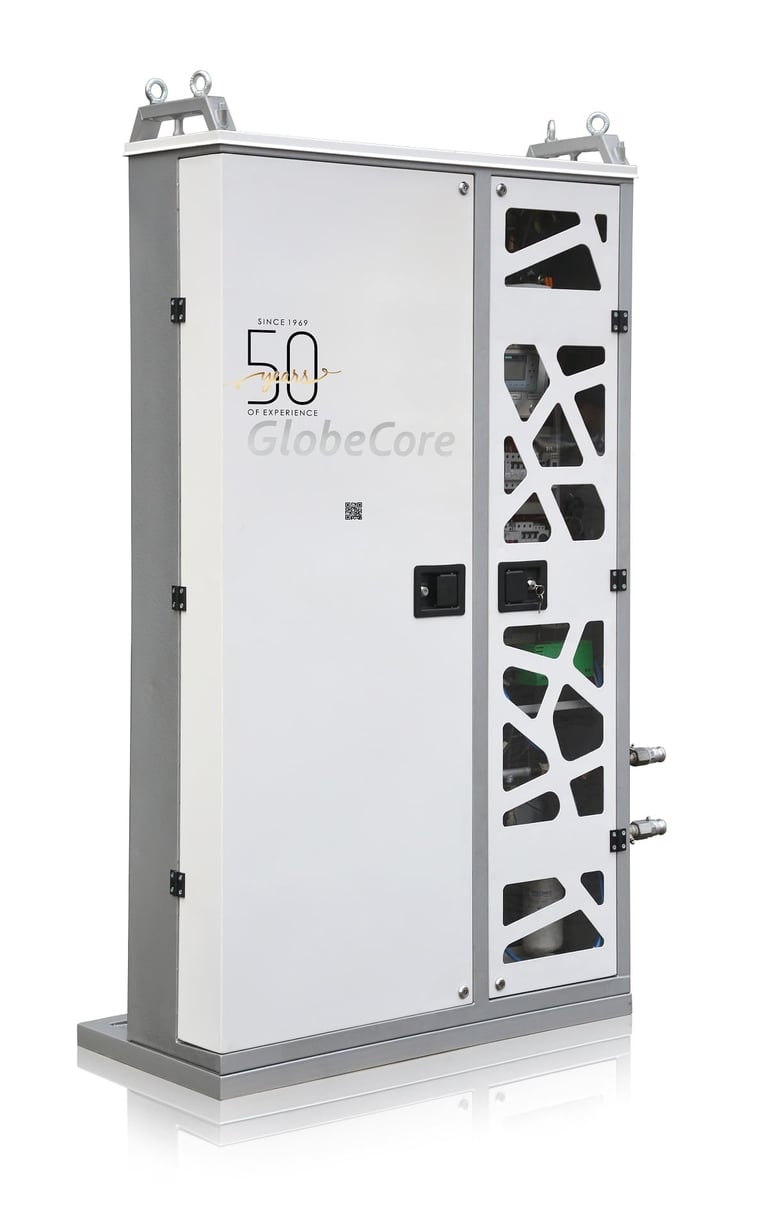

TOR-4 Online Transformer Dry-Out System

The TOR-4 transformer oil drying unit is designed to remove water from the transformer, keeping it dry independently of the...

• Advantages

  • connection to a transformer of any type and age;

  • the process of connection takes less than an hour;

  • the sorbent captures water regardless of its temperature and form;

  • the machine dries the oil without heating and does not require constant operator control;

  • the machine can be installed temporarily or permanently;

  • a robust housing that reliably protects the system;

  • once saturated with water, the sorbent can be reactivated using the BRPS (BRZ) unit and reused for oil drying.




Online Transformer Monitoring Systems

TOR-5 Online Transformer Monitoring System

Diagnostic mode GlobeCore technology for diagnostic evaluation of transformers status is based on measuring some parameters by means of sensors,...

• Advantages

  • Low relative cost of the system. The price of new transformers and the losses caused by emergency failure of operating transformers reach hundreds of thousands and millions of dollars. And the cost of TOR-5 system accounts for only a small part of those expenses which makes the purchase and usage thereof a profitable investment.

  • The system solves three challenges: determining the important parameters of transformers online, filtering and drying the insulating oil, as well as informing the user about its operation and the operation of the transformer in a prompt manner.

  • TOR-5 system is suitable for servicing new and aged oil-filled transformers, as well as multipurpose transformers.

  • Compact size. The system consists of the minimum number of components required for efficient operation which are placed in a single 115 centimeters wide, 208 centimeters high, and 35 centimeters long housing.

  • The service life of the system is commensurate with the service life of the transformer due to the reliable protection of all components from damage and atmospheric precipitation.

  • Convenient use of the web application. The web page displays a list of substations and transformers for each substation. The program also includes display of transformers on the map with representation of measurements and calculations in the form of graphs and charts. By choosing an object, one can get complete information about the oil condition for the entire period after installing TOR-5 system near the transformer, or for a selected period of time.

  • Easy connection. After the preparatory stage, it takes a few minutes to connect the system to the transformer.

  • The oil is processed automatically without disconnecting the transformer.

  • Remote monitoring. Even while on vacation, the head of the electric power company or an employee of the service subdivision can log into the system from any workplace and get to know the transformer fleet status without awaiting the laboratory result and leaving for the equipment operation site.

  • More complete information and assessment of transformer status change dynamics. Due to ongoing data acquisition, the transformer status change dynamics can be assessed which makes TOR-5 system more informative compared to periodic laboratory analyses.
